在應用和生產中提供一流的靈活性

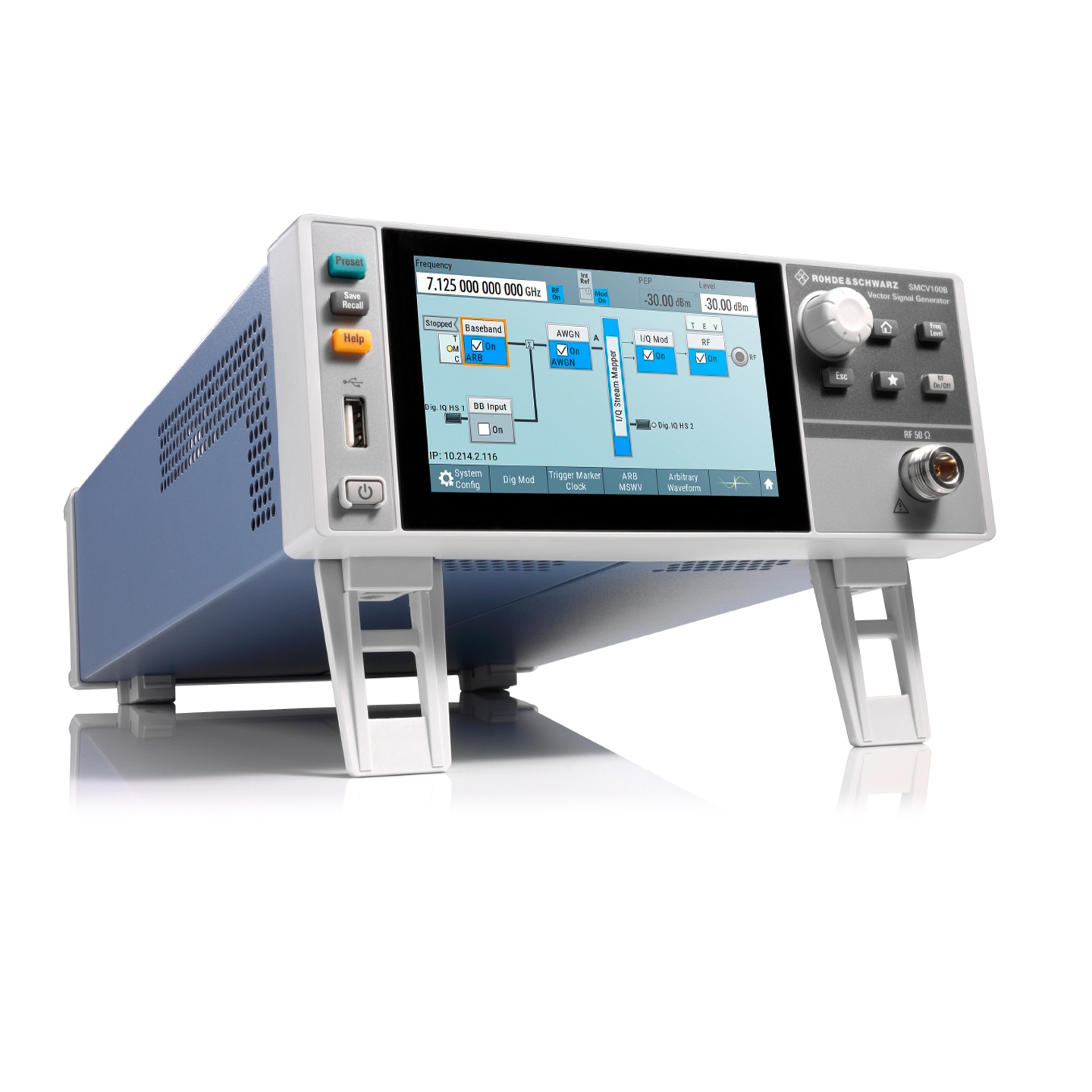

SMCV100B矢量信號發生器率先成為適用于汽車電子、廣播電視、導航和無線應用的多標準平臺。R&S?SMCV100B 功能獨特，可用于從實驗室到生產以及整合不同技術的多種應用。
主要特點：
• 適用于廣播電視、導航、蜂窩和無線應用的多標準平臺
• 全軟件選件定義的矢量信號發生器，具備5"觸摸屏
• 先進的射頻信號生成概念，頻率范圍介于4kHz至7.125GHz
• 輸出功率高達+25dBm
• 調制帶寬高達240MHz
產品優勢：
創新性&穩定性
頻率產生單元，作為信號發生器的基礎和核心，自然而然成為工程師們大開腦洞的首要對象。
今天，得益于半導體技術的不斷進步，直接合成+混頻架構的出現，讓模數概念又有了新的玩法。
SMCV100B采用最新的直接數字射頻上變頻技術來生成頻率高達2.5GHz的輸出信號。這允許在數字域中進行I/Q調制和RF信號生成，消除了傳統模擬I/Q調制器常見的I/Q不平衡誤差和LO泄漏。由于有了新概念，信號發生器的SSB相位噪聲性能非常好。模擬混頻概念用于生成2.5GHz以上的頻率。
品質保證&性?xún)r(jià)比
SMCV100B是第一款能夠涵蓋5GNRFR1到7.125GHz的經濟型信號發生器，這也使其成為移動通信應用的理想選擇。 SMCV100B還可以使用 WinIQSIM2仿真軟件，該軟件支持所有常見的蜂窩和無線連接標準，包括IoT和Wi-Fi（802.11xx）等標準。
作為享譽業界的射頻專家，R&S將在射頻設計和信號分析能力表現出的一流的價值和出色的可靠性，繼續發揚在 SMCV100B身上，完美支撐起新架構"直接數字合成"的技術優勢。
SMCV100B是優化現有測試系統的理想解決方案。生產部門通常都需要最大程度的靈活性和極快的響應時間，以生成不同標準的信號。憑借其平臺概念， SMCV100B可以完全滿足這些要求，之前用于不同標準的多個信號源現在只需一臺 SMCV100B即可代替，為未來測試系統的擴展實現成本控制。
硬實力&軟實力
更為關鍵的是， SMCV100B并不"偏科"，不管是在硬件上，還是軟件系統方面，都已經達到了一個新的高度。
SMCV100B為內部基帶信號生成提供了強大的硬件。它可以在FPGA中實時生成信號，也可以使用ARB發生器直接生成用于數字通信標準的I/Q信號。
FPGA中的實時信號生成專用于廣播標準。這種技術能夠連續和長時間不間斷地生成用于解碼的不同數據內容（音頻、視頻、數據、PRBS）的信號。這樣的長序列對于測試調諧器的性能或EMC是必需的。
Frequency
Range | with R&S®SMCVB-B103 option (mandatory) | 4 kHz to 3 GHz |
with R&S®SMCVB-B103 and R&S®SMCVB-KB106 options | 4 kHz to 6 GHz |
with R&S®SMCVB-B103, R&S®SMCVB-KB106 and R&S®SMCVB-KB107 options | 4 kHz to 7.125 GHz |
Resolution of setting | | 0.001 Hz |
Resolution of synthesis | f = 1 GHz | 2.665 μHz (nom.) |
Settling time | to within < 1 × 10–7 for f > 200 MHz or < 20 Hz for f ≤ 200 MHz with GUI update stopped, I/Q optimization mode: fast, measured from command at instrument to frequency settled within specified range, with Ethernet (fast socket) remote control, level setting characteristic: auto | < 5 ms |
Range and resolution of phase offset setting | | –999.99° to +999.99°, 0.01° resolution |
Reference frequency
Frequency error | at time of calibration in production | < 1 × 10–7 |
Aging | after 30 days of uninterrupted operation | ≤ 1 × 10–6/year |
Temperature effect | in temperature range from +5 °C to +45 °C | ± 1.0 × 10–6 |
Source | | internal, external |
External reference frequency modes | standard | 10 MHz |
Reference frequency input |

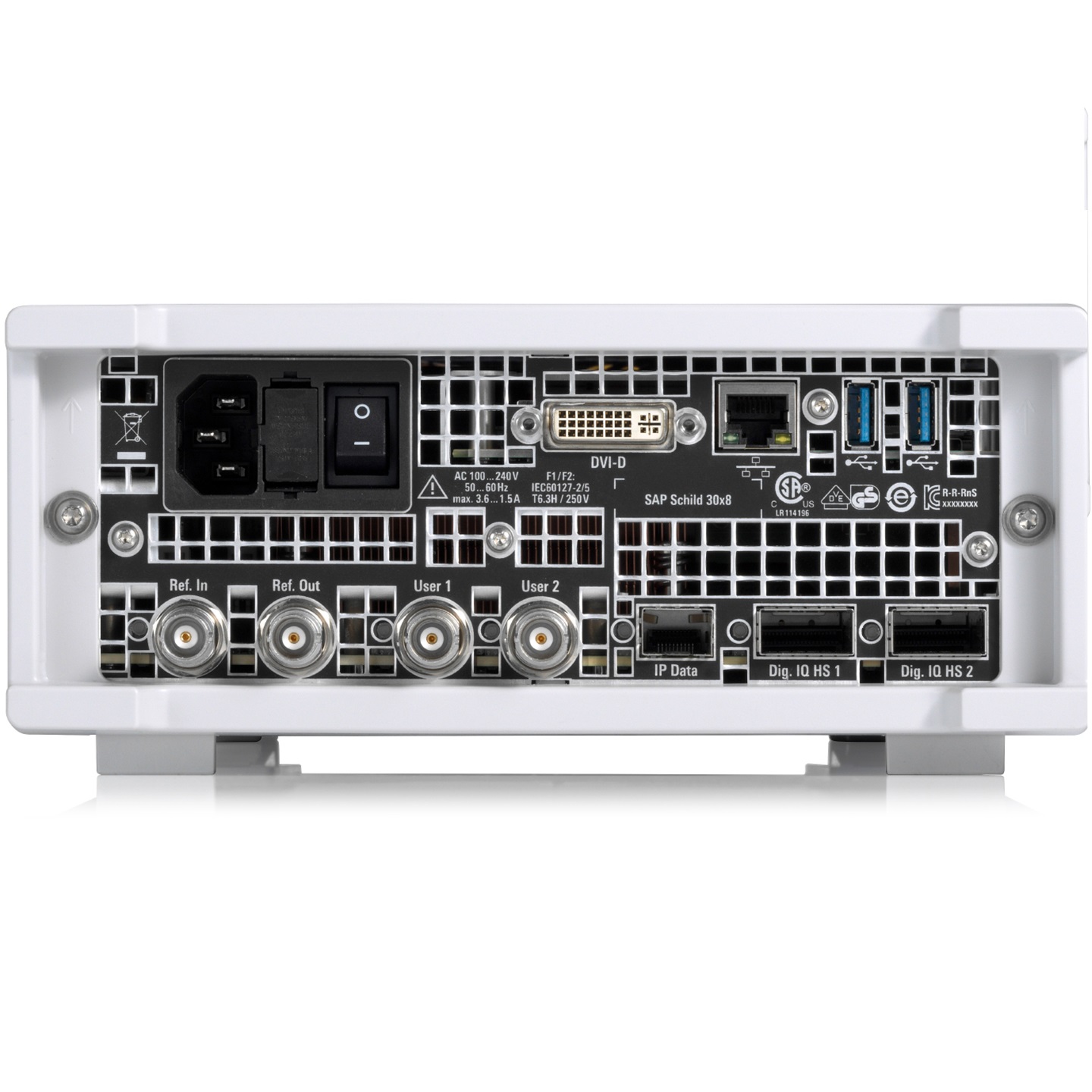

Connector type | REF IN on rear panel | BNC female |
Input frequency | | 10 MHz |
Minimum frequency locking range | | ± 25 × 10–6 (meas.) |
Input level range | | 0 dBm to +16 dBm (meas.) |
Input impedance | | 50 Ω (nom.) |
Reference frequency output |
Connector type | REF OUT on rear panel | BNC female |
Output frequency | square wave |
source mode: internal | 10 MHz |
source mode: external | 10 MHz |
Output level | | +7 dBm to +13 dBm, +10 dBm (meas.) |
Source impedance | | 50 Ω (nom.) |
Level
Setting range |
R&S®SMCVB-B103/-KB106/-KB107 | standard |
4 kHz ≤ f < 100 kHz | –120 dBm to +16 dBm |
100 kHz ≤ f < 6 GHz | –145 dBm to +16 dBm |
6 GHz ≤ f ≤ 7.125 GHz | –145 dBm to +16 dBm |
with R&S®SMCVB-K31 option |
4 kHz ≤ f < 100 kHz | –120 dBm to +25 dBm |
100 kHz ≤ f ≤ 6 GHz | –145 dBm to +25 dBm |
6 GHz ≤ f ≤ 7.125 GHz | –145 dBm to +25 dBm |
Setting resolution | | 0.01 dB |
Specified level range | peak envelope power (PEP) |
R&S®SMCVB-B103/-KB106/-KB107 | standard |
4 kHz < f ≤ 10 MHz | –110 dBm to +15 dBm |
10 MHz < f ≤ 6 GHz 1 | –120 dBm to +15 dBm |
6 GHz < f ≤ 7.125 GHz | –120 dBm to +15 dBm |
with R&S®SMCVB-K31 option |
4 kHz < f ≤ 10 MHz | –110 dBm to +20 dBm |
10 MHz < f ≤ 6 GHz 1 | –120 dBm to +20 dBm |
6 GHz < f ≤ 7.125 GHz | –120 dBm to +18 dBm |
Level accuracy | level setting characteristic: auto, temperature range from +18 °C to +33 °C |
level > –80 dBm |
4 kHz < f < 200 kHz | < 1.8 dB |
200 kHz ≤ f ≤ 10 MHz | < 0.7 dB |
10 MHz < f ≤ 2.5 GHz 1 | < 0.5 dB |
f > 2.5 GHz 1 | < 0.7 dB |
level ≤ –80 dBm |
4 kHz < f < 200 kHz | < 1.8 dB |
200 kHz ≤ f ≤ 10 MHz | < 1.2 dB, < 1.0 dB (typ.) |
10 MHz < f ≤ 2.5 GHz 1 | < 0.8 dB |
f > 2.5 GHz 1 | < 1.1 dB |
Settling time | to < 0.1 dB deviation from final value, with GUI update stopped, temperature range from +18 °C to +33 °C, f > 10 MHz, level setting characteristic: auto, I/Q optimization mode: fast measured from command at instrument to frequency settled within specified range, with Ethernet (fast socket) remote control |
| < 5 ms |
Interruption-free level range | level setting characteristic: uninterrupted level setting | > 20 dB |
